PLBP-064-120-SN-031 - Datasheet
MBA
Category Information

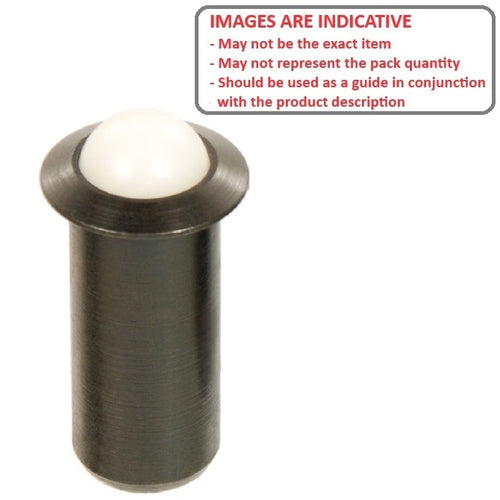

Plungers - Ball Push Fit - Stainless Body - Nylon BallNylon Ball Stainless Body Ball Push Fit Plungers. Unthreaded.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Product Data
- Body Diameter (D)
:
6.35
mm
+ 0.1 / - 0.0
(Equiv. 0.25 in.) - Length (L) 12.0 mm
- Initial Pressure (F1) 13.4 N
- Final Pressure (F2) 31.1 N
- Ball Diameter (D1) 4.8 mm
- Ball Height (H) 1.8 mm
- Shoulder Diameter (S) 7.9 mm
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 8483A28
- Reid Tool® SPFB-154
- SPFB154
