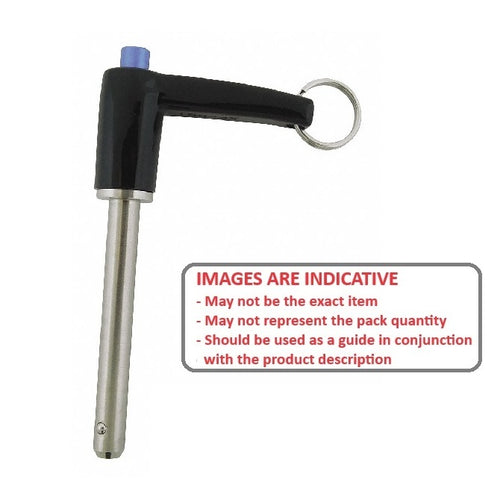

BLP-064-0508-LI-S17 - Datasheet
MBA
Category Information
Pins - Ball Lock - L-Handle Industrial Stainless SteelL-Handle Industrial Stainless Steel Ball Lock Pins. Quick release. 17-4 PH or 15-7 MO Stainless Steel pins. Handles are aluminium alloy.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls

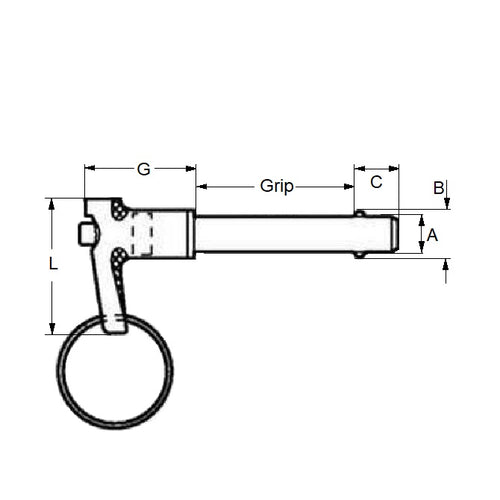

Product Data
- Nominal Diameter
:
6.35
mm
- 0.04 / - 0.08
(Equiv. 0.25 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 7.36 mm
- Open Ball Distance (B) 7.34 mm
- Handle Width (L) 45.72 mm
- Handle Length (G) 32.25 mm
- Pull Out Strength 104.00 Kg
- Calc. Double Shear Strength 4163 Kg
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- 90302A114
- BLLS-030
- BLLS030
- BLLS030A
- BLLS-030A
