BLP-064-0127-RHI-S17 - Datasheet
MBA
Category Information

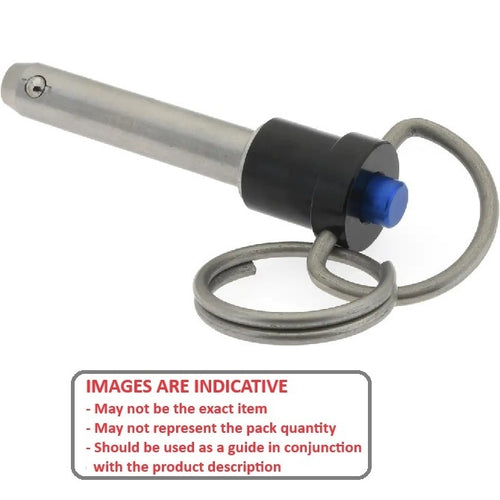

Pins - Ball Lock - Ring Handle Industrial Stainless SteelRing Handle Industrial Stainless Steel Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
- Ring dimensions may vary. Please contact us before purchasing if the ring dimensions are important to your application.
Product Data

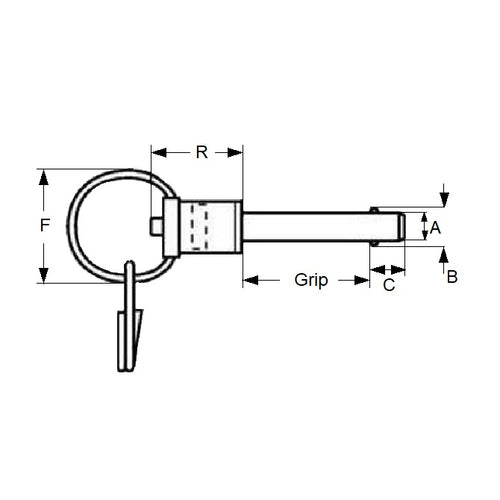

- Nominal Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Grip Length (B)
12.70
mm
(Equiv. 0.5 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 7.36 mm
- Open Ball Distance (B) 7.34 mm
- Ring Diameter (F) 20.32 mm
- Head Length (R) 19.81 mm
- Pull Out Strength 102.67 Kg
- Calc. Double Shear Strength 4100 Kg
- Max. Diameter 6.31 mm
- Min. Diameter 6.27 mm
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- 92384A032
- NoCor PLRS-0250-0500
- PLRS02500500
- BLRS009
- BLRS009A
- BLRS-009A
