PLBT-159C-318-C-080 - Datasheet
MBA
Category Information

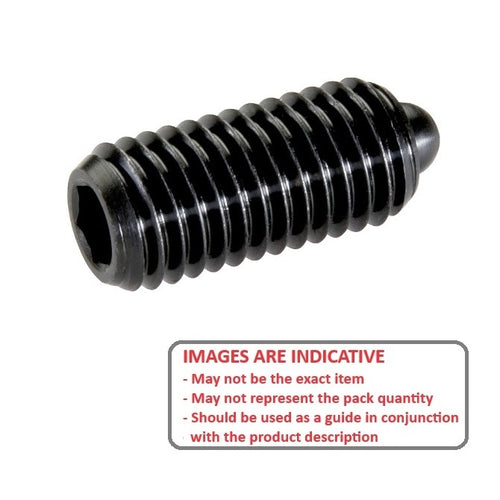

Plungers - Ball Threaded - Steel - StandardStandard Steel Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 5/8-11 UNC (15.88mm)
- Body Length (L)
31.8
mm
(Equiv. 1.252 in.) - Initial Pressure (F1) 40.0 N
- Final Pressure (F2) 80.1 N
- Ball Diameter (D1) 9.5 mm
- Ball Height (H) 2.4 mm
- Drive Socket 6.35mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- W107
- W-107
