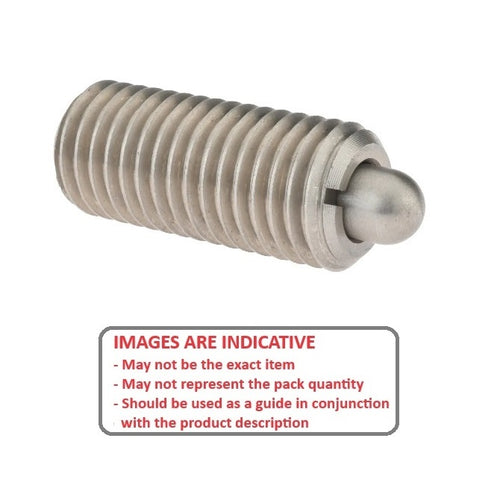

PLBT-159C-250-CS-040 - Datasheet
MBA
Category Information
Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 5/8-11 UNC (15.88mm)
- Body Length (L)
25.0
mm
(Equiv. 0.984 in.) - Initial Pressure (F1) 20.0 N
- Final Pressure (F2) 40.0 N
- Ball Diameter (D1) 9.5 mm
- Ball Height (H) 2.4 mm
- Drive Slotted
- Material Steel Body with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 3408A85
- NoCor W-11
- W11
