PLBT-079C-183-C-040 - Datasheet
MBA
Category Information

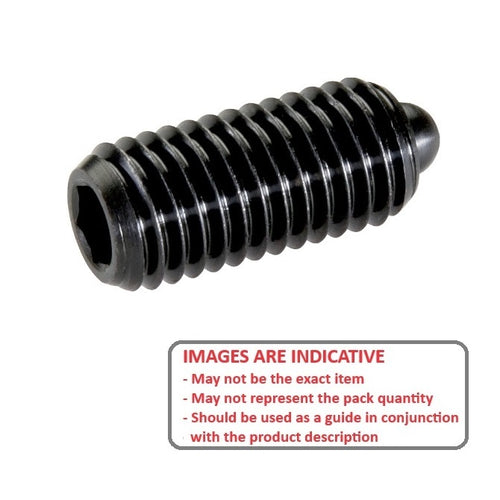

Plungers - Ball Threaded - Steel - StandardStandard Steel Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 5/16-18 UNC (7.94mm)
- Body Length (L)
18.3
mm
(Equiv. 0.72 in.) - Initial Pressure (F1) 17.8 N
- Final Pressure (F2) 40.0 N
- Ball Diameter (D1) 4.0 mm
- Ball Height (H) 1.0 mm
- Drive Socket 2.38mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- W-104
- W104
