PLBT-079C-160-S3LK-030 - Datasheet
MBA
Category Information

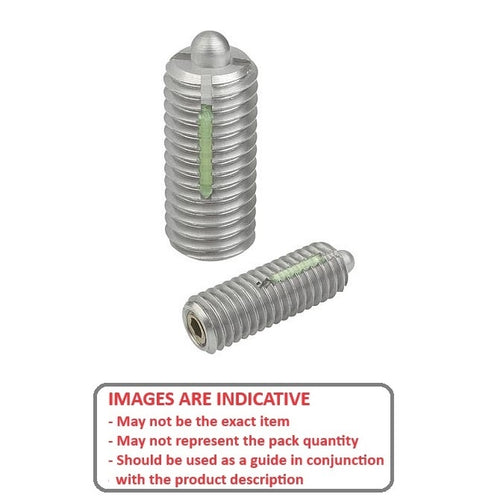

Plungers - Ball Threaded - Stainless Body and Ball with ThreadlockStainless Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
- When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 5/16-18 UNC (7.94mm)
- Body Length (L)
16.0
mm
(Equiv. 0.63 in.) - Initial Pressure (F1) 1.5 N
- Final Pressure (F2) 30.0 N
- Ball Diameter (D1) 5.1 mm
- Ball Height (H) 1.5 mm
- Drive Slotted
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- KBP-219
- KBP219
