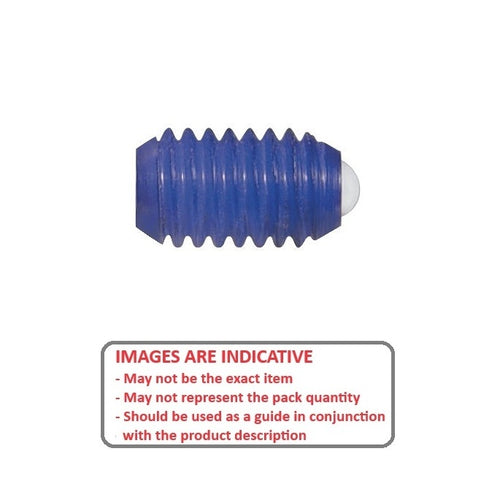

PLBT-079C-147-AN-022 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Acetal Body - Nylon Ball

Nylon Ball Acetal Body Ball Threaded Plungers. For use in plastic applications or when the application requires as few metal parts as possible.

  • Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
  • When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
  • Electrical isolation
  • Highly durable acetal body with stainless steel spring allows use in corrosive environments.
  • Plunger wrenches will not work with these.

Product Data

  • Thread Size (D) : 5/16-18 UNC (7.94mm)
  • Body Length (L) 14.7 mm
    (Equiv. 0.579 in.)
  • Initial Pressure (F1) 8.9 N
  • Final Pressure (F2) 22.2 N
  • Ball Diameter (D1) 4.0 mm
  • Tip Length (H) 1.0 mm
  • Colour Blue
  • Drive Slotted
  • Material Acetal with Nylon Ball
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 84775A56
  • NDL56
