PLBT-079C-147-AS-020 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Acetal Body - Stainless Ball

Stainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : 5/16-18 UNC (7.94mm)
    • Body Length (L) 14.7 mm
      (Equiv. 0.579 in.)
    • Initial Pressure (F1) 8.9 N
    • Final Pressure (F2) 20.0 N
    • Ball Diameter (D1) 4.0 mm
    • Ball Height (H) 1.0 mm
    • Drive Slotted
    • Material Acetal with Stainless Ball
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 84775A44
    • D56
    View full details

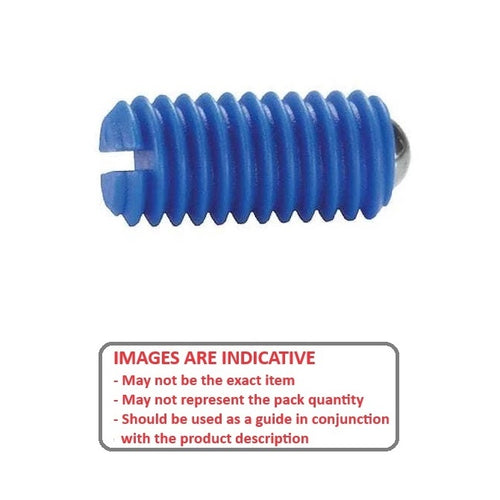

    PLBT-079C-147-AS-020DiagramPLBT-079C-147-AS-020Image
