PLST-079C-159-HKC-027 - Datasheet
MBA
Category Information

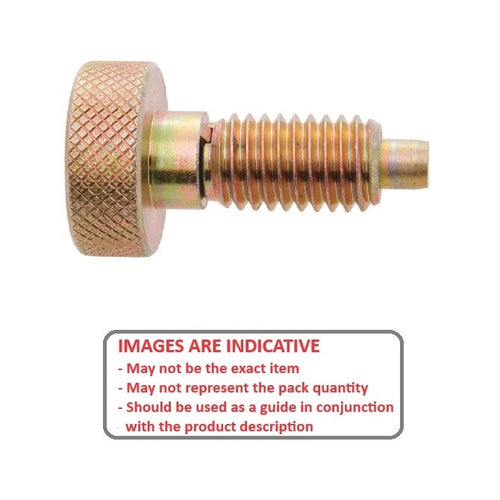

Plungers - Spring - Knurled Handle - Non Locking - SteelSteel Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
Product Data

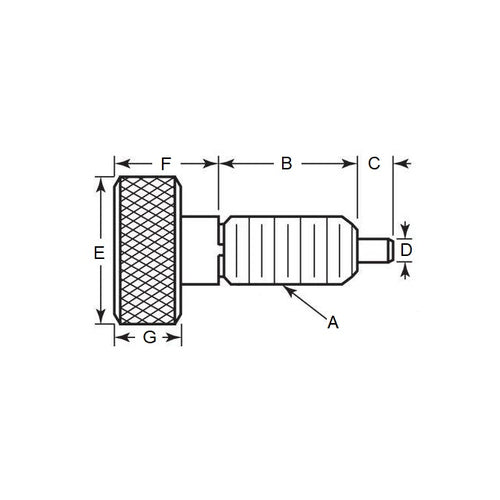

- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 26.7 N
- Tip Diameter (D) 3.9 mm
- Tip Length (C) 4.8 mm
- Head Length (F) 9.5
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 84915A46
- PHR-22
- PHR22
