PDBS040-0439-S - Datasheet

MBA

Category Information

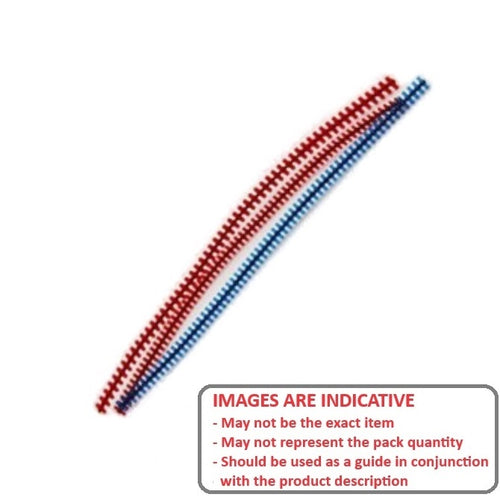

Belts - Posi-Drive - 4.00 mm Circular Pitch Single Core

4.00 mm Circular Pitch Single Core Posi-Drive Belts. Same as US 20 Pitch - Use with Posi-Drive Pulleys.

  • Posi-drive belts are a discontined line, but there is limited stock available.
  • These are designed to operate on special posi-drive pulleys, also discontinued.
  • Posi-drive pulleys and belts are still available on special order. All items are priced to quit.
  • Use Single Core with Posi-Drive Pulleys.

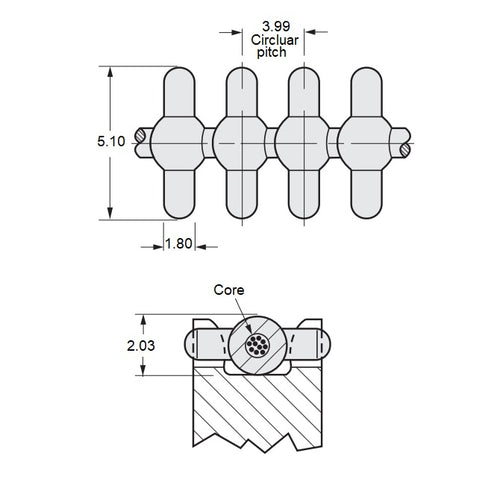

  • 3.990mm Circular Pitch. Same as US 20 Pitch.
  • Posi-drive material lengths in this category can not be joined by the customer as special equipment is required.
  • Material lengths are used in reciprocating applications and not meant to be joined

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Pitch Length : 438.9 mm
    (Equiv. 17.28 in.)
  • Max Tension 4.6 kg
  • Max Speed Loaded (Mtr/Min) 183
  • Min. Teeth in Mesh 6
  • Min. Pulley Diameter 19.1 mm
  • Belt Type Single Core
  • Teeth 110
  • Max Speed Unloaded (Mtr/Min) 335
  • Material Molded Polyurethane / Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • S7913YM20SS110
