PLBP-048-103-SN-011 - Datasheet
MBA
Category Information

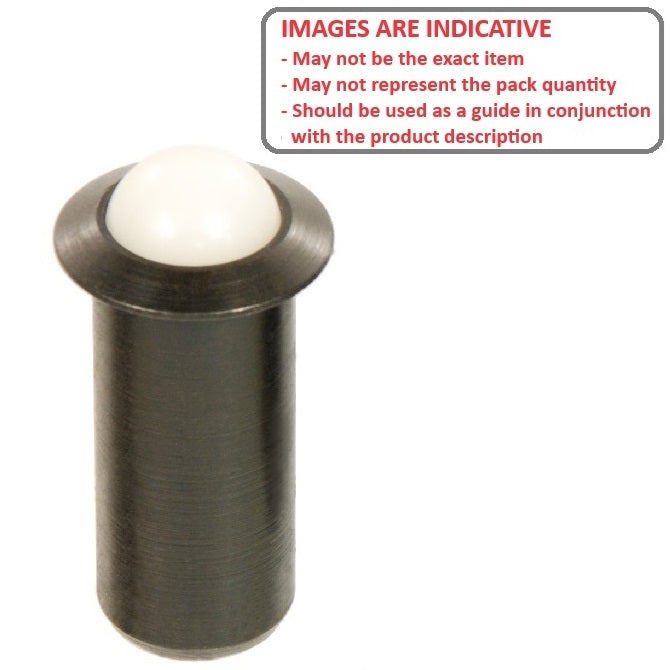

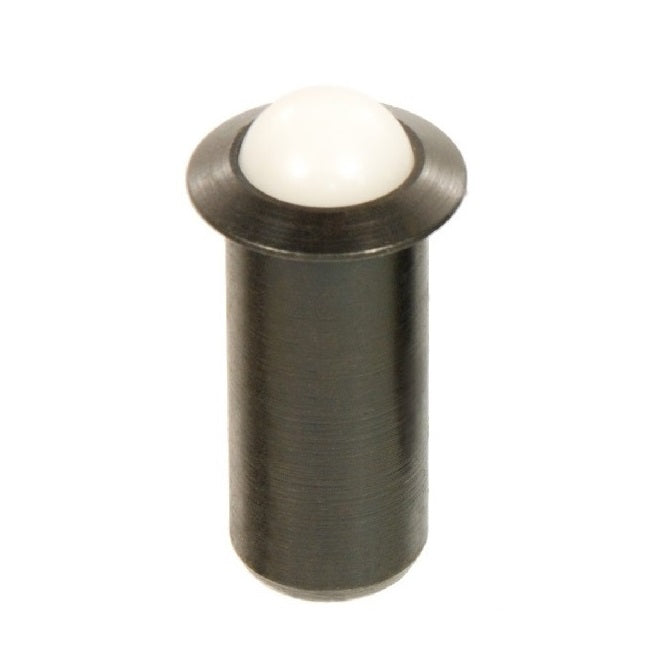

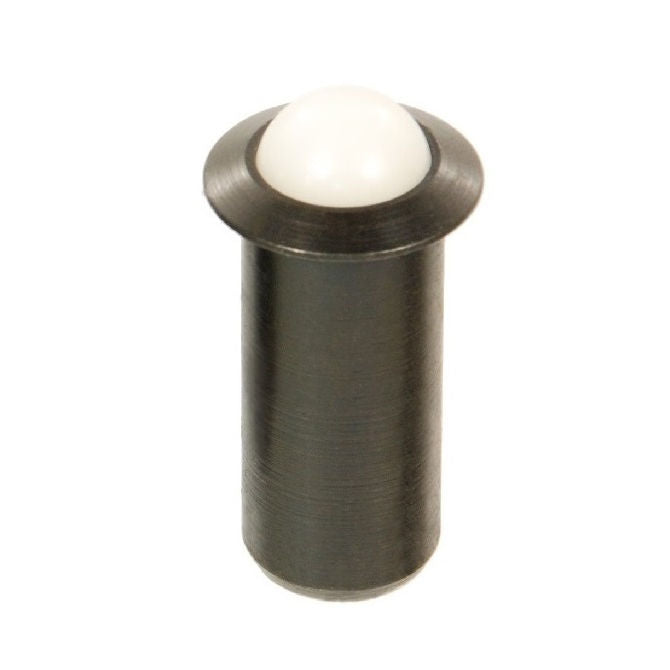

Plungers - Ball Push Fit - Stainless Body - Nylon BallNylon Ball Stainless Body Ball Push Fit Plungers. Unthreaded.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Product Data

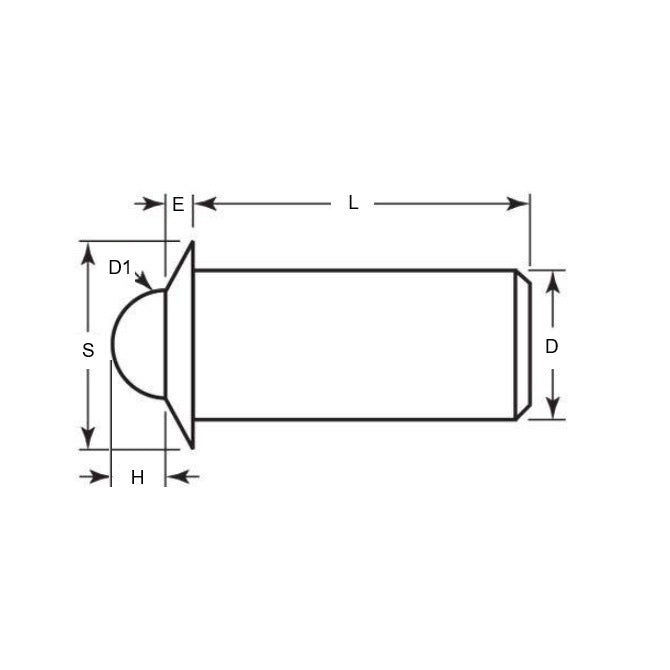

- Body Diameter (D)
:
4.78
mm
+ 0.1 / - 0.0
(Equiv. 0.188 in.) - Length (L)
10.3
mm
(Equiv. 0.406 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 11.1 N
- Ball Diameter (D1) 4.0 mm
- Ball Height (H) 1.5 mm
- Shoulder Diameter (S) 6.4 mm
- 6.4
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 8483A26
- SPFB-151
- SPFB151
