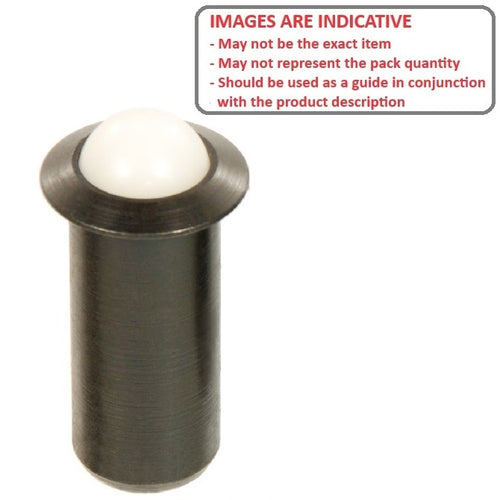

PLBP-048-100-SN-022 - Datasheet

MBA

Product Data

• Body Diameter (D) : 4.78 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.188 in.)
• Length (L) 10.0 mm
  (Equiv. 0.394 in.)
• Initial Pressure (F1) 8.9 N
• Final Pressure (F2) 22.2 N
• Ball Diameter (D1) 4.0 mm
• Ball Height (H) 1.5 mm
• Shoulder Diameter (S) 6.4 mm
• 6.4
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8483A27
• SPFB-152
• SPFB152
