BLP-048-0254-K2-S4 - Datasheet
MBA
Category Information

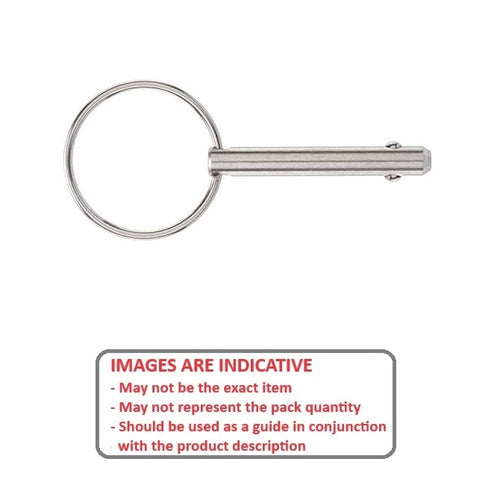

Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless SteelDual Ball 300 Grade Stainless Steel Keyring Style Ball Lock Pins. Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Handles
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

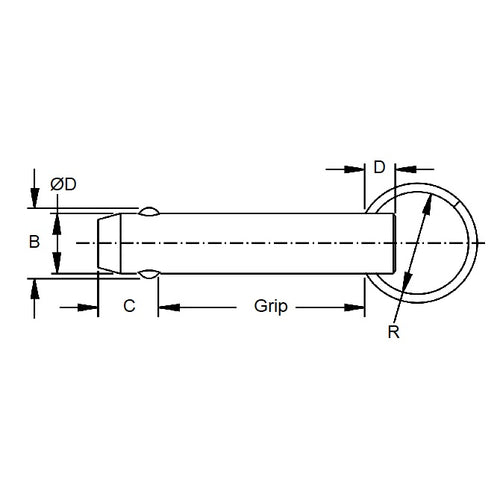

- Nominal Diameter
:
4.76
mm
(Equiv. 0.187 in.) - Grip Length (B)
25.40
mm
(Equiv. 1 in.) - Pin Material Grade 304 Stainless Steel
- Locking Ball to End (C ) 5.08 mm
- Open Ball Distance (B) 5.18 mm
- Ring Diameter (R ) 25.40 mm
- Depth of Ring in Pin (D) 4.75 mm
- Detent Style 2 Ball with Shoulder
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SMP803A
- SMP-803A
