PLBT-095C-203-C-044 - Datasheet
MBA
Category Information

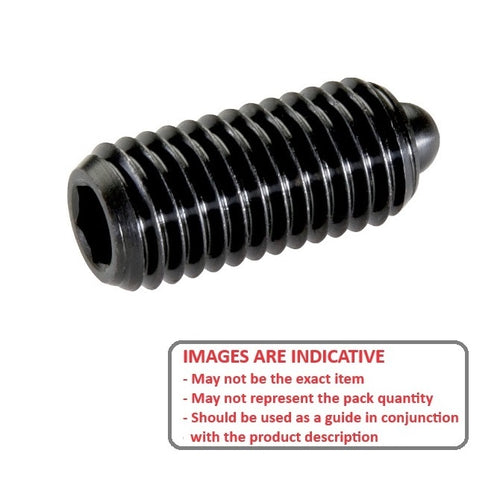

Plungers - Ball Threaded - Steel - StandardStandard Steel Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 3/8-16 UNC (9.53mm)
- Body Length (L)
20.3
mm
(Equiv. 0.799 in.) - Initial Pressure (F1) 22.2 N
- Final Pressure (F2) 44.5 N
- Ball Diameter (D1) 4.8 mm
- Ball Height (H) 1.2 mm
- Drive Socket 3.96mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- W-105
- W105
