PLBT-095C-159-AN-022 - Datasheet
MBA
Category Information

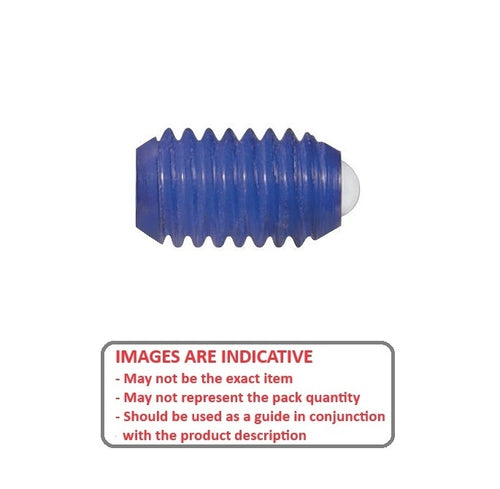

Plungers - Ball Threaded - Acetal Body - Nylon BallNylon Ball Acetal Body Ball Threaded Plungers. For use in plastic applications or when the application requires as few metal parts as possible.
- Electrical isolation
- Highly durable acetal body with stainless steel spring allows use in corrosive environments.
- Plunger wrenches will not work with these.
Product Data
- Thread Size (D) : 3/8-16 UNC (9.53mm)
- Body Length (L)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 11.1 N
- Final Pressure (F2) 22.2 N
- Ball Diameter (D1) 4.8 mm
- Tip Length (H) 1.4 mm
- Colour White
- Drive Slotted
- Material Acetal with Nylon Ball
Product Compliance and Data
Additional Resources
Cross References
- 84775A53
- ND58
