PLBT-095C-159-AS-020 - Datasheet
MBA
Category Information

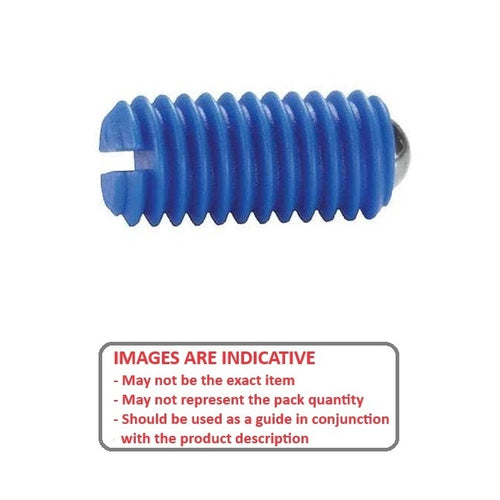

Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 3/8-16 UNC (9.53mm)
- Body Length (L)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 8.9 N
- Final Pressure (F2) 20.0 N
- Ball Diameter (D1) 4.8 mm
- Ball Height (H) 1.4 mm
- Drive Slotted
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 84775A46
- DL58
