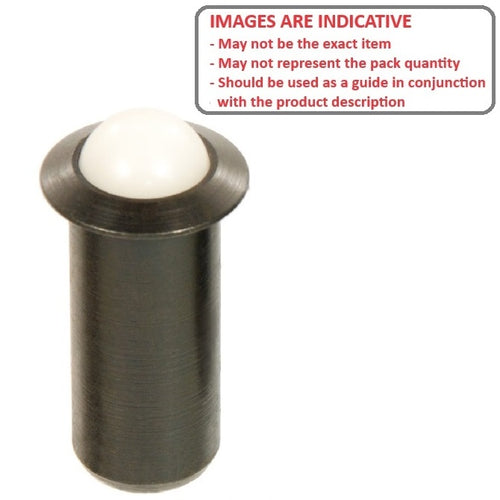

PLBP-032-064-SN-006 - Datasheet

MBA

Product Data

• Body Diameter (D) : 3.18 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.125 in.)
• Length (L) 6.4 mm
  (Equiv. 0.252 in.)
• Initial Pressure (F1) 1.8 N
• Final Pressure (F2) 5.8 N
• Ball Diameter (D1) 2.4 mm
• Ball Height (H) 0.9 mm
• Shoulder Diameter (S) 4.8 mm
• 4.8
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8483A24
• SPFB147
• SPFB-147
