BLP-191-0508-LI-S17 - Datasheet
MBA
Category Information

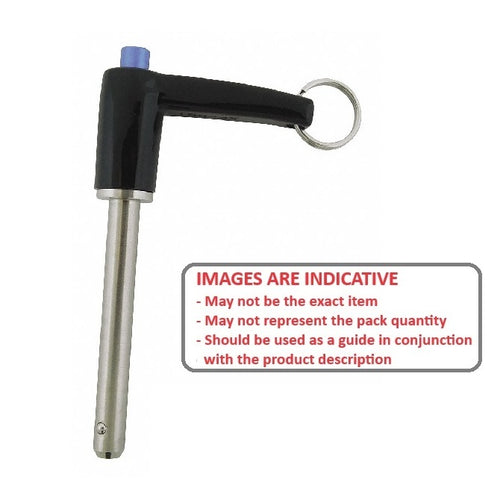

Pins - Ball Lock - L-Handle Industrial Stainless SteelL-Handle Industrial Stainless Steel Ball Lock Pins. Quick release. 17-4 PH or 15-7 MO Stainless Steel pins. Handles are aluminium alloy.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

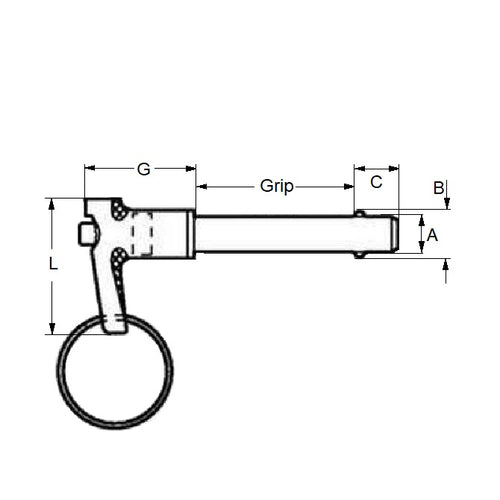

- Nominal Diameter
:
19.05
mm
- 0.05 / - 0.09
(Equiv. 0.75 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 17.01 mm
- Open Ball Distance (B) 22.53 mm
- Handle Width (L) 77.97 mm
- Handle Length (G) 43.68 mm
- Pull Out Strength 1335.00 Kg
- Calc. Double Shear Strength 37330 Kg
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- BLLS250
- BLLS-250
- BLLS250A
- BLLS-250A
