BLP-127-0508-RHI-S17 - Datasheet
MBA
Category Information

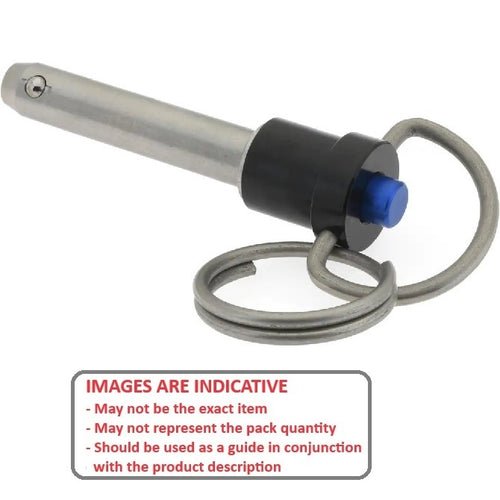

Pins - Ball Lock - Ring Handle Industrial Stainless SteelRing Handle Industrial Stainless Steel Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
- Ring dimensions may vary. Please contact us before purchasing if the ring dimensions are important to your application.
Product Data

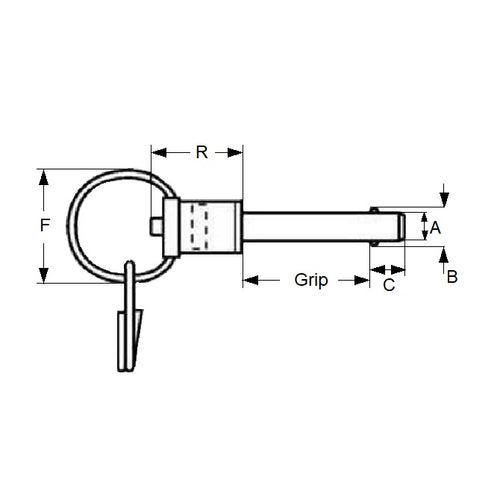

- Nominal Diameter
:
12.70
mm
(Equiv. 0.5 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 11.68 mm
- Open Ball Distance (B) 15.08 mm
- Ring Diameter (F) 29.46 mm
- Head Length (R) 28.96 mm
- Pull Out Strength 517.85 Kg
- Calc. Double Shear Strength 16400 Kg
- Max. Diameter 12.66 mm
- Min. Diameter 12.62 mm
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- 92384A094
- BLRS130A
- BLRS-130
- BLRS-130A
