BLP-127-0381-LI-S17 - Datasheet
MBA
Category Information

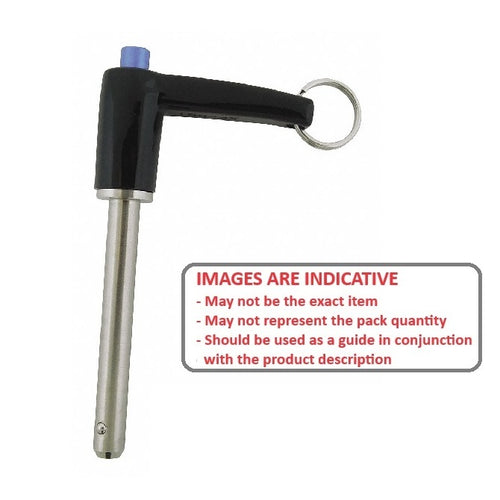

Pins - Ball Lock - L-Handle Industrial Stainless SteelL-Handle Industrial Stainless Steel Ball Lock Pins. Quick release. 17-4 PH or 15-7 MO Stainless Steel pins. Handles are aluminium alloy.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data
- Nominal Diameter
:
12.70
mm
- 0.05 / - 0.09

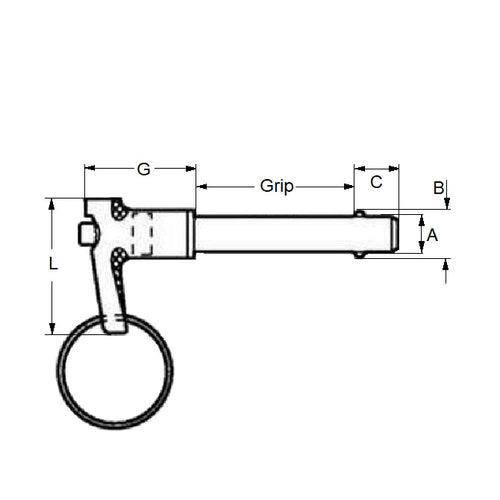

(Equiv. 0.5 in.) - Grip Length (B)
38.10
mm
(Equiv. 1.5 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 11.68 mm
- Open Ball Distance (B) 15.09 mm
- Handle Width (L) 59.94 mm
- Handle Length (G) 40.64 mm
- Pull Out Strength 525.00 Kg
- Calc. Double Shear Strength 16652 Kg
- Material Stainless Steel 17-4 PH
Product Compliance and Data
Additional Resources
Cross References
- 90302A411
- BLLS120
- BLLS-120
- BLLS120A
- BLLS-120A
