BLP-120-1000-TI-S17 - Datasheet
MBA
Category Information

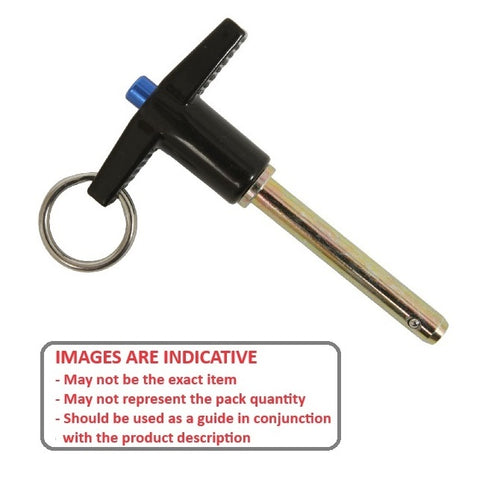

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-AluStainless-Alu Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. 17-4 PH or 15-7 MO Stainless Steel pins. Handles are aluminium alloy. Tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

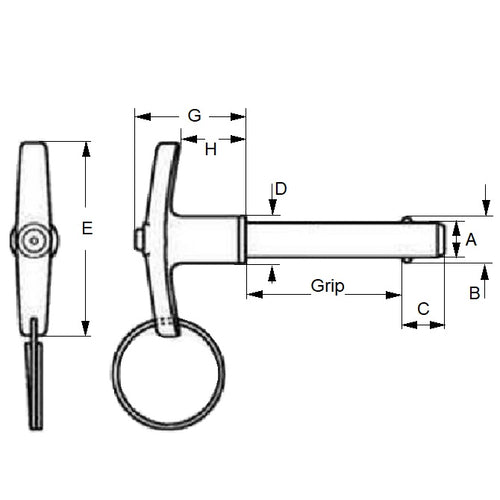

- Nominal Diameter
:
12.00
mm
(Equiv. 0.472 in.) - Grip Length (B)
100.00
mm
(Equiv. 3.937 in.) - Pin Material Grade 17-4 PH Stainless / Aluminium Handle
- Locking Ball to End (C) 10.00 mm
- Open Ball Distance (B) 14.45 mm
- Shank Diameter (D) 16.00 mm
- Handle Width (E) 51.00 mm
- Handle Height (G) 37.00 mm
- Handle Shank Length (H) 21 mm
- Max. Diameter 11.96 mm
- Min. Diameter 11.92 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- MBL-120A
- MBL120
- MBL120A
