PLBT-064C-135-AN-022 - Datasheet
MBA
Category Information

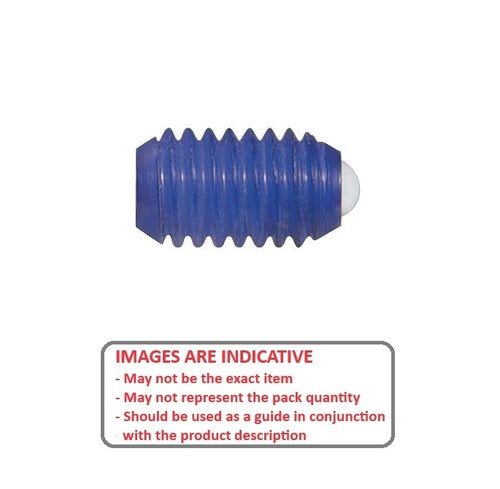

Plungers - Ball Threaded - Acetal Body - Nylon BallNylon Ball Acetal Body Ball Threaded Plungers. For use in plastic applications or when the application requires as few metal parts as possible.
- Electrical isolation
- Highly durable acetal body with stainless steel spring allows use in corrosive environments.
- Plunger wrenches will not work with these.
Product Data
- Thread Size (D) : 1/4-20 UNC (6.35mm)
- Body Length (L)
13.5
mm
(Equiv. 0.531 in.) - Initial Pressure (F1) 8.9 N
- Final Pressure (F2) 22.2 N
- Ball Diameter (D1) 3.2 mm
- Tip Length (H) 0.7 mm
- Colour White
- Drive Slotted
- Material Acetal with Nylon Ball
Product Compliance and Data
Additional Resources
Cross References
- 84775A51
- ND54
