PLBT-064C-135-AS-022 - Datasheet
MBA
Category Information

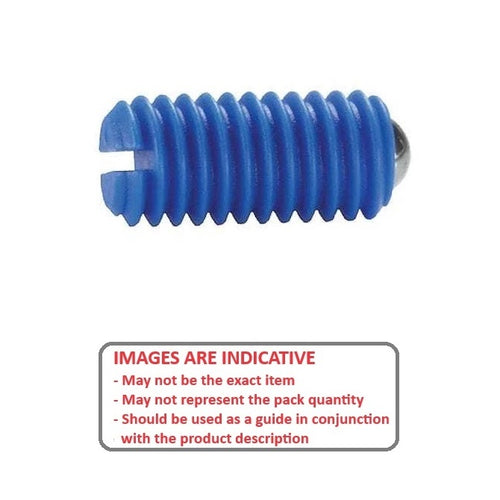

Plungers - Ball Threaded - Acetal Body - Stainless BallStainless Ball Acetal Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 1/4-20 UNC (6.35mm)
- Body Length (L)
13.5
mm
(Equiv. 0.531 in.) - Initial Pressure (F1) 8.9 N
- Final Pressure (F2) 22.2 N
- Ball Diameter (D1) 3.2 mm
- Ball Height (H) 0.7 mm
- Drive Slotted
- Material Acetal with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 84755A41
- D54
