PLST-064C-112-RS-009A - Datasheet
MBA
Category Information

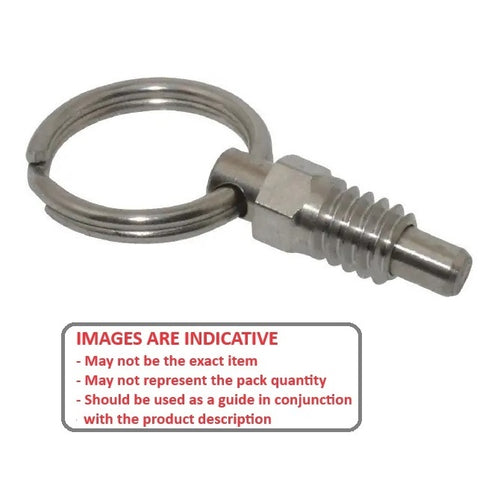

Plungers - Spring - Ring Handle - Non Locking - StainlessStainless Non Locking Ring Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.

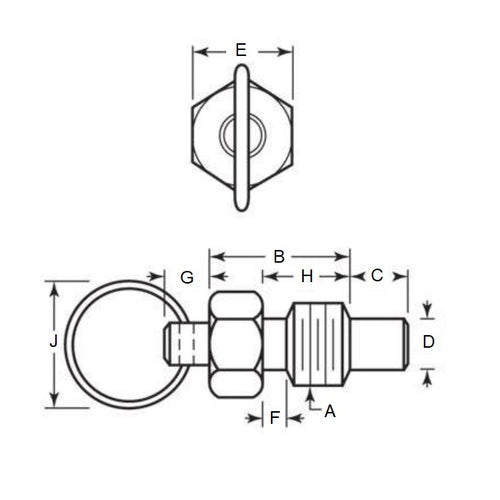

Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Thread Length (B)
7.9
mm
(Equiv. 0.311 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 8.9 N
- Tip Diameter (D) 4.1 mm
- Tip Length (C) 4.8 mm
- Body Length (B) 11.2 mm
- Across Flats (E) 6.4 mm
- G 3.3 mm
- Thread Length (H) 7.9 mm
- Ring Diameter (J) 19.1
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 8500A28
- PRSN-250AS
- PRSN250AS
