PLST-127C-254-HS-008 - Datasheet
MBA
Category Information

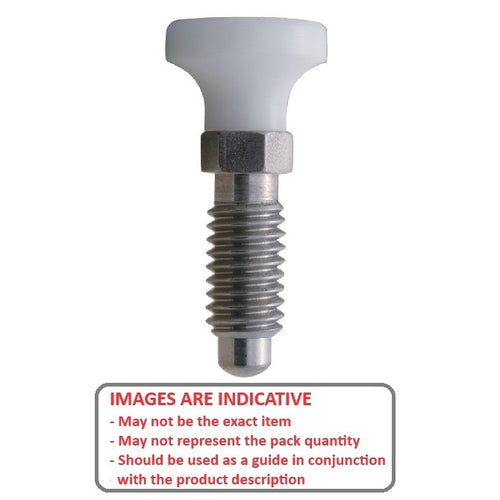

Plungers - Spring - Acetal Handle - Non Locking - StainlessStainless Non Locking Acetal Handle Spring Plungers. White acetal plastic handle . 303 stainless steel body and plunger.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

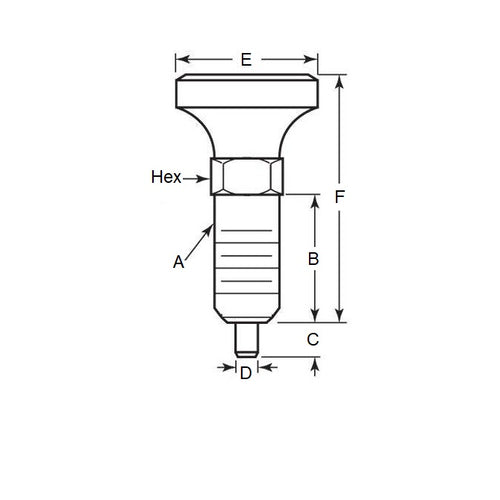

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Thread Length (B)
25.4
mm
(Equiv. 1 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 7.8 N
- Tip Diameter (D) 7.9 mm
- Tip Length (C) 6.4 mm
- Head Diameter (E) 25.4 mm
- Hex 12.7
- Material Stainless Steel with Acetal
Product Compliance and Data
Additional Resources
Cross References
- PRT-22
- PRT22
