W0080-ALN-W-SET - Datasheet
Iglidur
Category Information

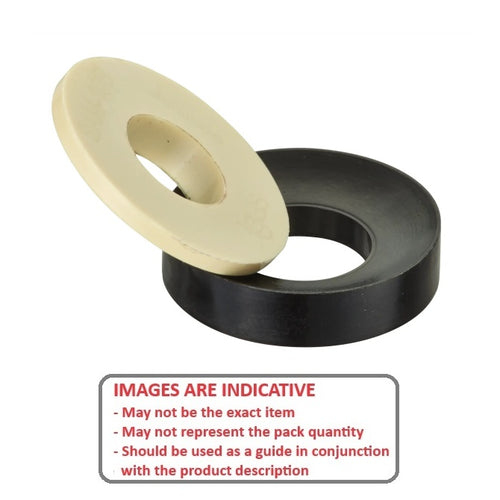

Washers - Self Aligning - Sets - PlasticPlastic Sets Self Aligning Washers. Complete set, containing both aligning and seating washers.
- Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.
- Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.
- Tensile strengths shown are Static Axial in Newtons.
- Easy to install.
- Good friction wear properties.

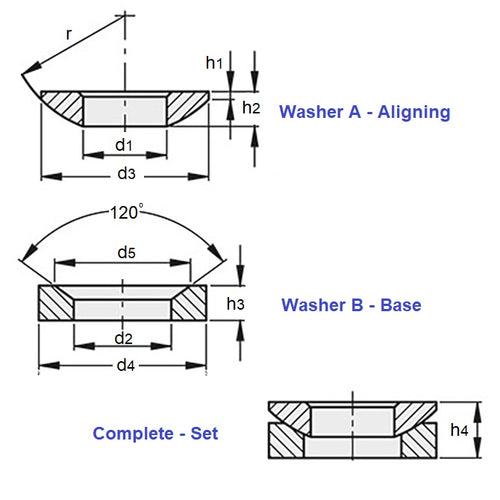

Product Data
- Nominal Inside Diameter (B)
:
8.00
mm
+ 0.20 / - 0.00
(Equiv. 0.315 in.) - Housing Pad Bore (d3)
10.00
mm
(Equiv. 0.394 in.) - OD (d2)
20.00
mm
(Equiv. 0.787 in.) - Ball socket (h1) 4.00 mm
- Spherical Disk (h2) 5.00 mm
- Overall Height (H) 6.80 mm
- Radius (R) 20.00 mm
- Compensation angle 2 °
- Short Term Max Tensile Strngth 8000 N
- Long Term Max Tensile Strength 4000 N
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Igus SAM-08
- SAM08
