CP-000-HUB-G-CT-83 - Datasheet

MBA

Category Information

Couplings - Crowned Tooth Gear - Hubs Only

Hubs Only Crowned Tooth Gear Couplings. Match with sleeves from the sleeves category

  • An expanded range may be available on special order. Please enquire.
  • +/- 1.02 mm Axial Displacement.
  • 0.41mm Parallel offset per hub.
  • 1o Angular Displacement.
  • Free axial movement. 19.55 to 88 Nm. 8500 to 14000 rpm.
  • High torque / low inertia.

Product Data

  • Bore : Unbored 0 mm
  • Bore Unbored 0 mm
  • Sleeve OD 82.6 mm
    (Equiv. 3.252 in.)
  • Description Hub Only
  • Max Speed 6700 RPM
  • Max Torque 1388.000 n.m
  • Hub. Config Set Screw
  • Hub Diameter (C) 58.420 mm
  • Hub Length (E) 35.560 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • GU105
    • GU-105
    View full details

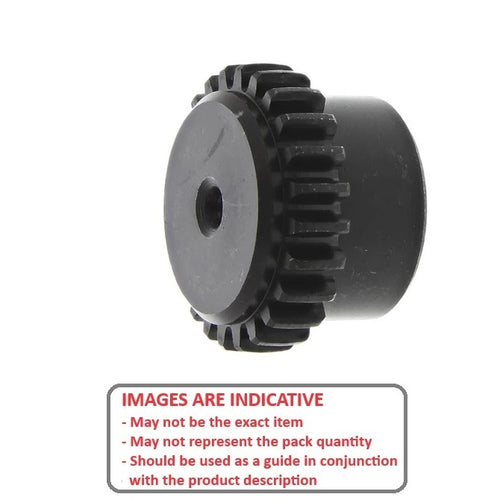

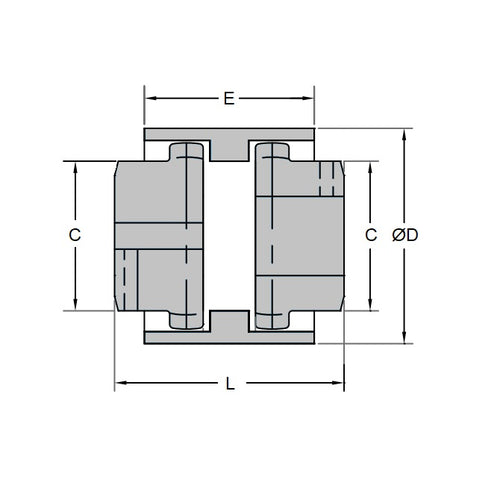

    CP-000-HUB-G-CT-83DiagramCP-000-HUB-G-CT-83Image
