WRE-0070-LS - Datasheet
MBA
Category Information
Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment

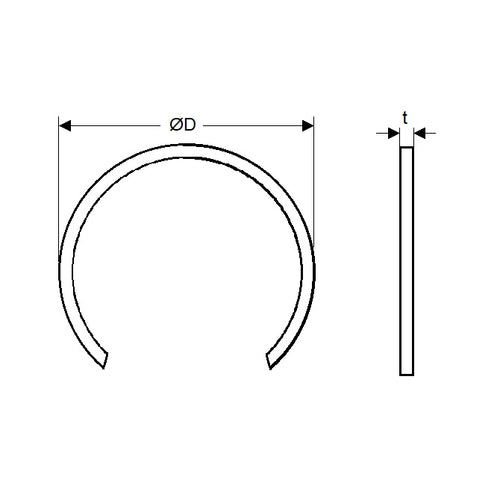

Product Data
- Shaft or Bearing OD (d1)
:
7.00
mm
(Equiv. 0.276 in.) - Clip Thickness (T)
0.70
mm
+ 0 / - 0.10
(Equiv. 0.028 in.) - Groove Dia. (Dg)
6.70
mm
+ 0 / - 0.09
(Equiv. 0.264 in.) - Approx. Loose Circlip ID (A) 6.50 mm
- Radial Wall (S) min/max 1.20 mm + 0 / - 0.10
- Groove Width (W) 0.80 mm
- Approx. Loose Clip OD 8.9
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSW-007
- NTN WR7
- DSW007
- WRE0070SQ
