WRE-0039-SQ-O - Datasheet
MBA
Category Information

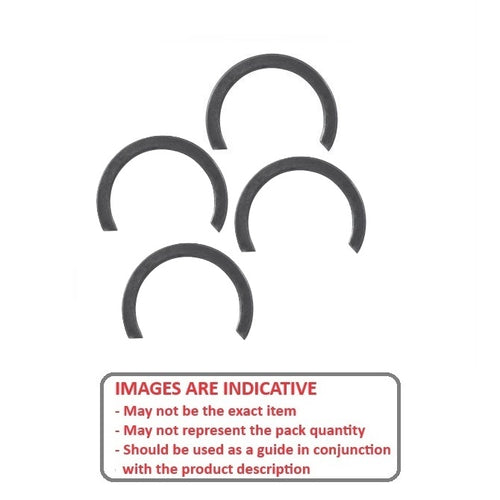

Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment
Product Data
- Shaft or Bearing OD (d1)
:
3.96
mm
(Equiv. 0.156 in.) - Clip Thickness (T)
0.51
mm
+/- 0.08
(Equiv. 0.02 in.) - Groove Dia. (Dg)
3.71
mm
+ 0.10 / - 0.00
(Equiv. 0.146 in.) - Approx. Loose Circlip ID (A) 3.68 mm + 0.00 / - 2.00
- Radial Wall (S) min/max 0.51 mm +/- 0.08
- Groove Width (W) 0.61 mm
- Approx. Loose Clip OD 4.7
- Info Radial Assembly - Open Gap
- Section Profile Square Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 400-2125
- Arcon CSO-2125
- NoCor XSO-2125
- XSO2125
- A06002125
- A0600-2125
- CSO2125
- 4002125
