WRE-0333-SQ-O - Datasheet
MBA
Category Information

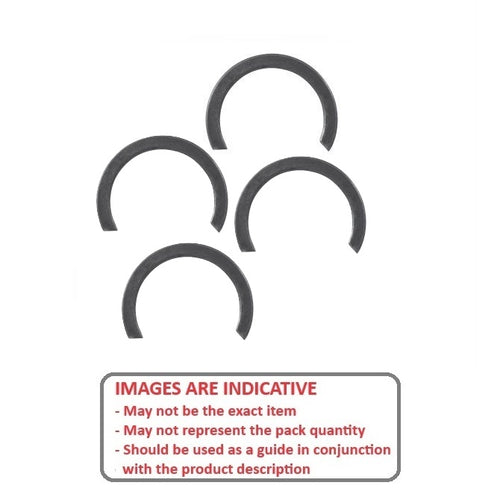

Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment
Product Data
- Shaft or Bearing OD (d1)
:
33.33
mm
(Equiv. 1.312 in.) - Clip Thickness (T)
2.77
mm
+/- 0.08
(Equiv. 0.109 in.) - Groove Dia. (Dg)
31.95
mm
+ 0.08 / - 0.00
(Equiv. 1.258 in.) - Approx. Loose Circlip ID (A) 31.65 mm + 0.00 / - 1.20
- Radial Wall (S) min/max 2.77 mm +/- 0.08
- Groove Width (W) 2.97 mm
- Approx. Loose Clip OD 37.19
- Info Radial Assembly - Open Gap
- Section Profile Square Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 400-248
- Arcon CSO-248
- NoCor XSO-248
- XSO248
- A0600-248
- A0600248
- CSO248
- 400248
