WRE-0260-LS - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 26.00 mm
    (Equiv. 1.024 in.)
  • Clip Thickness (T) 1.20 mm + 0 / - 0.10
    (Equiv. 0.047 in.)
  • Groove Dia. (Dg) 25.00 mm + 0 / - 0.13
    (Equiv. 0.984 in.)
  • Approx. Loose Circlip ID (A) 24.50 mm
  • Radial Wall (S) min/max 1.75 mm + 0 / - 0.10
  • Groove Width (W) 1.30 mm
  • Approx. Loose Clip OD 28
  • Section Profile Rectangular with Square Edge
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor DSW-026
  • Seeger SW26
  • Seeger SW26-BLS
  • NTN WR26
  • DSW026
  • WRE0260SQ
  • SW26BLS
  • M24000260APP
  • M2400-0260APP
View full details

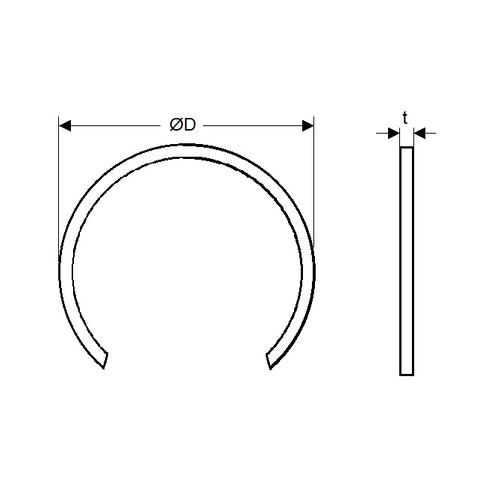

WRE-0260-LSDiagramWRE-0260-LSImage
