WRE-0238-SQ-O - Datasheet
MBA
Category Information

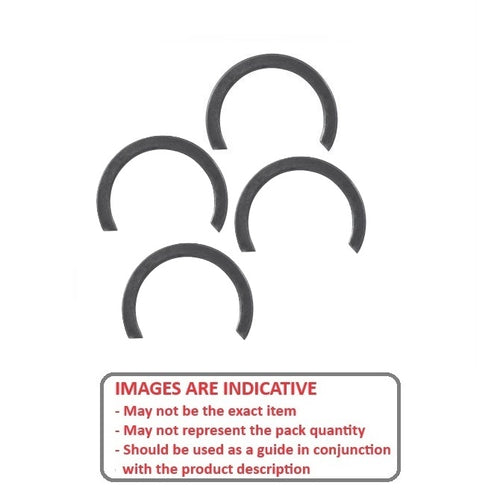

Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment
Product Data
- Shaft or Bearing OD (d1)
:
23.83
mm
(Equiv. 0.938 in.) - Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.) - Groove Dia. (Dg)
22.89
mm
+ 0.08 / - 0.00
(Equiv. 0.901 in.) - Approx. Loose Circlip ID (A) 22.68 mm + 0.00 / - 0.90
- Radial Wall (S) min/max 1.80 mm +/- 0.05
- Groove Width (W) 1.98 mm
- Approx. Loose Clip OD 26.28
- Info Radial Assembly - Open Gap
- Section Profile Square Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 400-236
- Arcon CSO-236
- NoCor XSO-236
- XSO236
- A0600-236
- A0600236
- CSO236
- 400236
