WRE-0220-LS - Datasheet
MBA
Category Information
Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment
Product Data

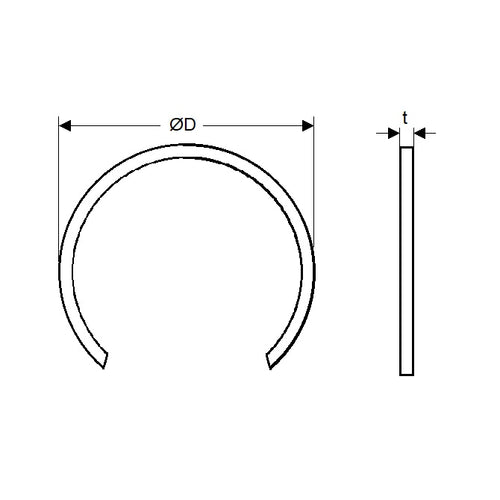

- Shaft or Bearing OD (d1)
:
22.00
mm
(Equiv. 0.866 in.) - Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.) - Groove Dia. (Dg)
21.20
mm
+ 0 / - 0.13
(Equiv. 0.835 in.) - Approx. Loose Circlip ID (A) 20.70 mm
- Radial Wall (S) Approx. 1.75 mm + 0 / - 0.10
- Groove Width (W) 1.30 mm
- Approx. Loose Clip OD 24.2
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSW-022
- Seeger M2400-22
- NTN WR22
- DSW022
- WRE0220SQ
- M240022
- M24000220APP
- M2400-0220APP
