WRE-0191-SQ-O - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 19.05 mm
    (Equiv. 0.75 in.)
  • Clip Thickness (T) 1.58 mm +/- 0.05
    (Equiv. 0.062 in.)
  • Groove Dia. (Dg) 18.24 mm + 0.08 / - 0.00
    (Equiv. 0.718 in.)
  • Approx. Loose Circlip ID (A) 18.09 mm + 0.00 / - 0.65
  • Radial Wall (S) min/max 1.58 mm +/- 0.05
  • Groove Width (W) 1.75 mm
  • Approx. Loose Clip OD 21.25
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-230
  • Arcon CSO-230
  • NoCor XSO-230
  • XSO230
  • A0600230
  • A0600-230
  • CSO230
  • 400230
View full details

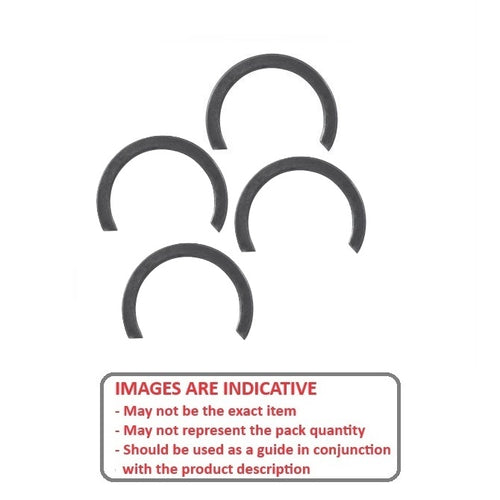

WRE-0191-SQ-ODiagramWRE-0191-SQ-OImage
