WRE-0159-SQ-O - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 15.88 mm
    (Equiv. 0.625 in.)
  • Clip Thickness (T) 1.40 mm +/- 0.05
    (Equiv. 0.055 in.)
  • Groove Dia. (Dg) 15.16 mm + 0.08 / - 0.00
    (Equiv. 0.597 in.)
  • Approx. Loose Circlip ID (A) 15.01 mm + 0.00 / - 0.65
  • Radial Wall (S) min/max 1.40 mm +/- 0.05
  • Groove Width (W) 1.58 mm
  • Approx. Loose Clip OD 17.81
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-226
  • Arcon CSO-226
  • NoCor XSO-226
  • XSO226
  • A0600-226
  • A0600226
  • CSO226
  • 400226
View full details

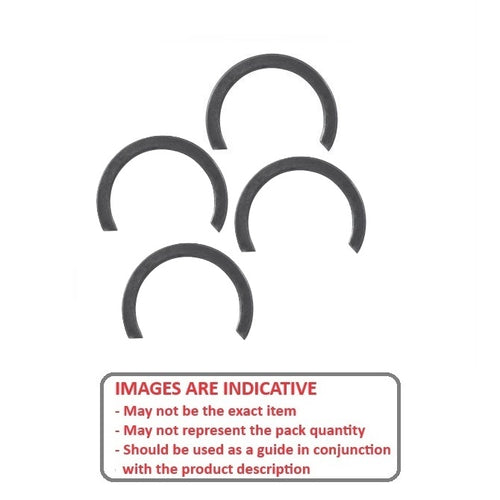

WRE-0159-SQ-ODiagramWRE-0159-SQ-OImage
