WRE-0143-SQ-HO - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 14.28 mm
    (Equiv. 0.562 in.)
  • Clip Thickness (T) 1.80 mm +/- 0.05
    (Equiv. 0.071 in.)
  • Groove Dia. (Dg) 13.36 mm + 0.08 / - 0.00
    (Equiv. 0.526 in.)
  • Approx. Loose Circlip ID (A) 13.23 mm + 0.00 / - 0.65
  • Radial Wall (S) min/max 1.80 mm +/- 0.05
  • Groove Width (W) 1.98 mm
  • Approx. Loose Clip OD 16.83
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-225
  • Arcon CSO-225
  • NoCor XSO-225
  • XSO225
  • A0600-225
  • A0600225
  • CSO225
  • 400225
View full details

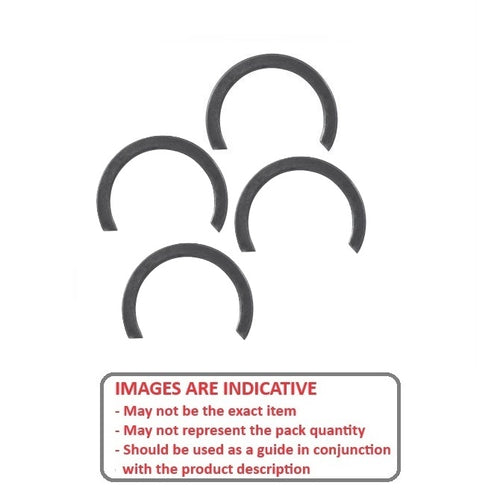

WRE-0143-SQ-HODiagramWRE-0143-SQ-HOImage
