WRE-0130-LS - Datasheet
MBA
Category Information
Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment

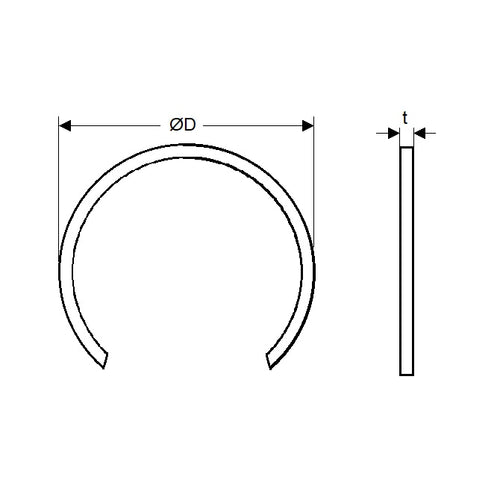

Product Data
- Shaft or Bearing OD (d1)
:
13.00
mm
(Equiv. 0.512 in.) - Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.) - Groove Dia. (Dg)
12.50
mm
+ 0 / - 0.11
(Equiv. 0.492 in.) - Approx. Loose Circlip ID (A) 12.20 mm
- Radial Wall (S) min/max 1.30 mm + 0 / - 0.10
- Groove Width (W) 1.10 mm
- Approx. Loose Clip OD 14.8
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSW-013
- NTN WR13
- DSW013
- WRE0130SQ
