WRE-1100-LS - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 110.00 mm
    (Equiv. 4.331 in.)
  • Clip Thickness (T) 2.50 mm + 0 / - 0.10
    (Equiv. 0.098 in.)
  • Groove Dia. (Dg) 107.70 mm + 0 / - 0.22
    (Equiv. 4.24 in.)
  • Approx. Loose Circlip ID (A) 106.60 mm
  • Radial Wall (S) min/max 3.40 mm + 0 / - 0.10
  • Groove Width (W) 2.70 mm
  • Approx. Loose Clip OD 113.4
  • Section Profile Rectangular with Square Edge
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor DSW-110
  • Seeger SW110
  • Seeger SW110A501-PAS
  • NTN WR110
  • DSW110
  • WRE1100SQ
  • SW110A501PAS
  • M2400-1100APP
  • M24001100APP
View full details

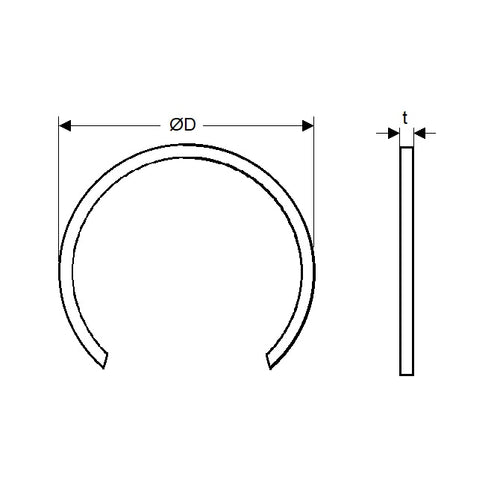

WRE-1100-LSDiagramWRE-1100-LSImage
