AC-2580-1 - Datasheet

ENQUIRE

Product Data

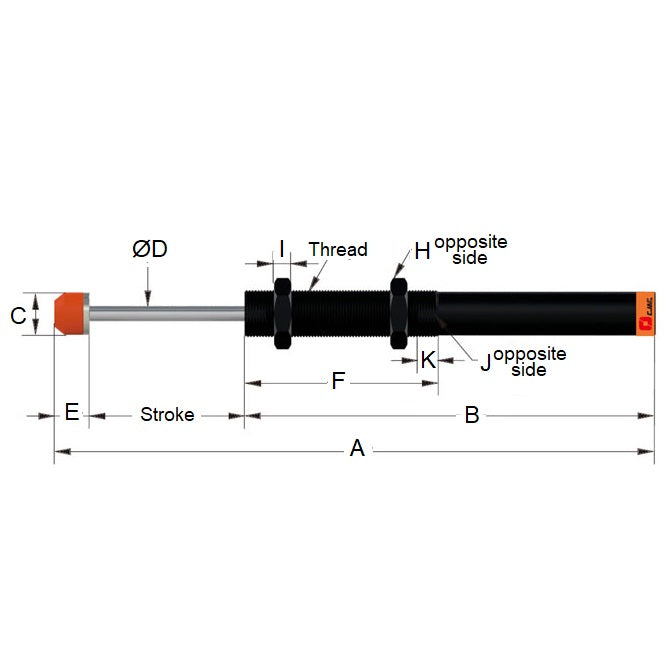

• Stroke : 80.0 mm
• Thread (C) M25x1.5
• Length (A) 336.5 mm
• Shaft Size (D) 8.0 mm
• Max. Effective Mass 20 Kg
• Max. Nm Per Cycle 150
• Max. Nm Per Hour 120000
• Max Impact Speed 4.0 m/s
• Weight 535 g
• Body Length (B) 100 mm
• Tip Length x Diameter (CxE) 22x19.5 mm
• Figure Figure 2.
