AC-2050-1 - Datasheet
MBA
Category Information
Shock Absorbers - Hydraulic - Non-Adjustable - C-JacC-Jac Non-Adjustable Hydraulic Shock Absorbers. Self compensation
Product Data
- Stroke : 50.0 mm
- Thread (C) M20x1.5
- Length (A) 235.0 mm
- Shaft Size (D) 6.0 mm
- Max. Effective Mass 60 Kg
- Max. Nm Per Cycle 60
- Max. Nm Per Hour 60000
- Max Impact Speed 3.5 m/s
- Weight 300 g
- Body Length (B) 167 mm
- Tip Length x Diameter (CxE) 18x18 mm

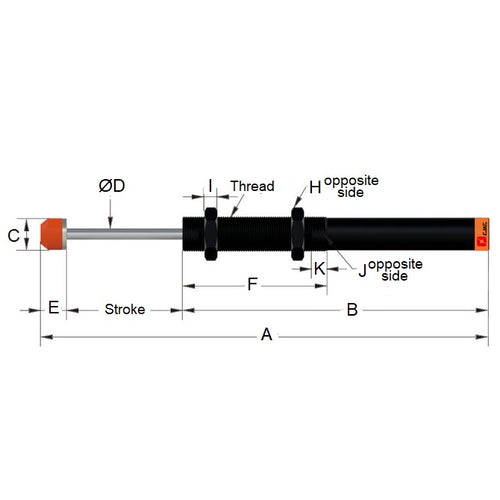

- Figure Figure 1.
