AC-2540-3 - Datasheet
ENQUIRE
Category Information

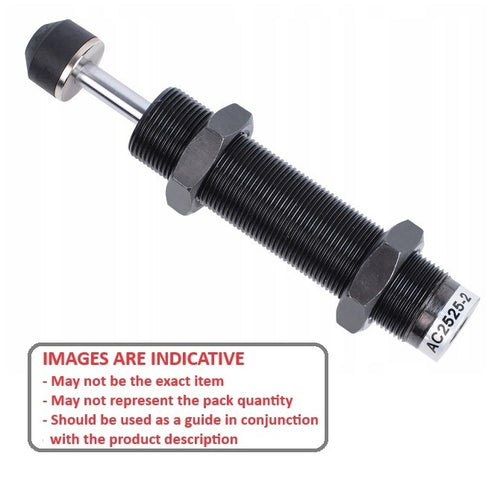

Shock Absorbers - Hydraulic - Non-Adjustable - C-JacC-Jac Non-Adjustable Hydraulic Shock Absorbers. Self compensation
Product Data
- Stroke : 40.0 mm
- Thread (C) M25x1.5
- Length (A) 213.0 mm
- Shaft Size (D) 8.0 mm
- Max. Effective Mass 2000 Kg
- Max. Nm Per Cycle 120
- Max. Nm Per Hour 75000
- Max Impact Speed 4.0 m/s
- Weight 430 g
- Body Length (B) 117 mm
- Tip Length x Diameter (CxE) 22x36 mm

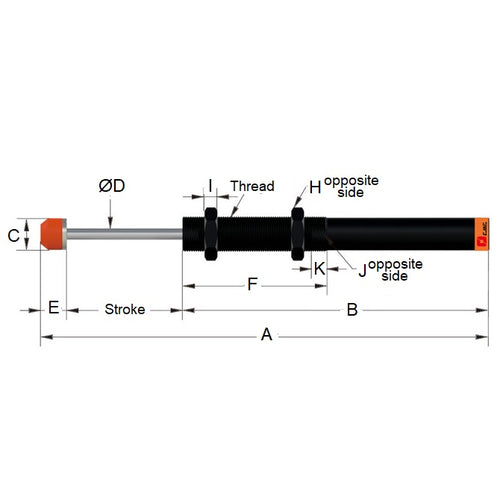

- Figure Figure 1.
