ACD-2035-3 - Datasheet
ENQUIRE
Category Information
Shock Absorbers - Hydraulic - Non-Adjustable - C-JacC-Jac Non-Adjustable Hydraulic Shock Absorbers. Self compensation
Product Data
- Stroke : 35.0 mm
- Thread (C) M20x1.5
- Length (A) 223.0 mm
- Shaft Size (D) 6.0 mm
- Max. Effective Mass 650 Kg
- Max. Nm Per Cycle 52
- Max. Nm Per Hour 63000
- Max Impact Speed 1.0 m/s
- Weight 210 g
- Body Length (B) 123 mm
- Tip Length x Diameter (CxE) 18x15 mm

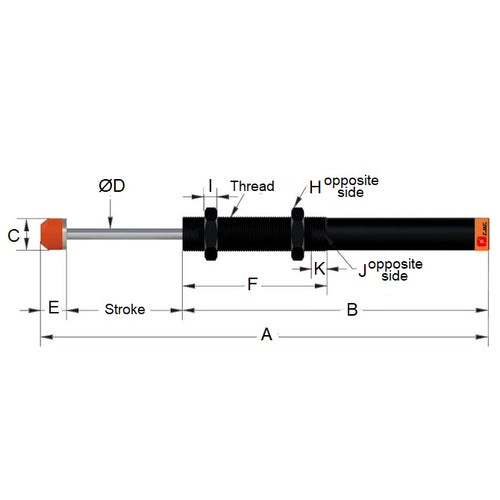

- Figure Figure 2.
