REF-050-L-CT - Datasheet

MBA

Category Information

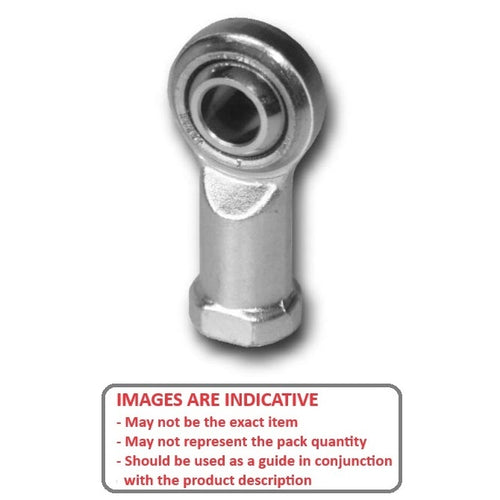

Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit

Tight Fit PTFE Lined Plain Steel Female Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints

  • An expanded range may be available on special order. Please enquire.
  • Dimensions not shown are available on request.

Product Data

  • Eye Size (d1) : 5.000 mm
    (Equiv. 0.197 in.)
  • Overall Length (L) 35.00 mm
    (Equiv. 1.378 in.)
  • Thread Size M5x0.8 Left
  • Thread Length (l2) 14.00 mm
  • Head Width (W) 7.00 mm
  • Eye Width (W1) 8.00 mm
  • Head Diameter (D) 16.00 mm
  • Centre Height (l1) 27.00 mm
  • Body Width/Flange Width(W2/D3) 9.00 / 12.00 mm
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi E-GZNL5
    • KWK TF5L
    • EGZNL5
