REF-140-L-CT - Datasheet
MBA
Category Information

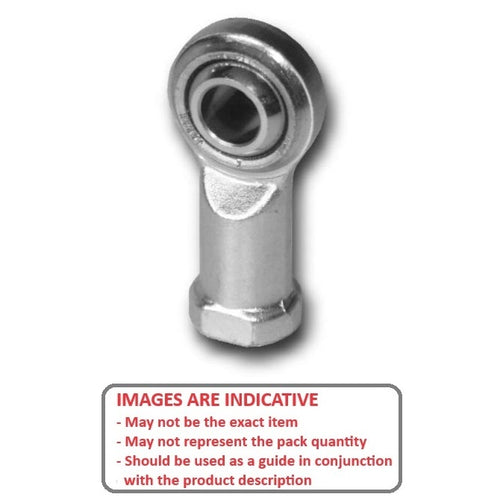

Rod Ends - Female - Steel - Plain - PTFE Lined - Tight FitTight Fit PTFE Lined Plain Steel Female Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
14.000
mm
(Equiv. 0.551 in.) - Overall Length (L)
74.00
mm
(Equiv. 2.913 in.) - Thread Size M14x2 Left
- Thread Length (l2) 27.00 mm
- Head Width (W) 14.00 mm
- Eye Width (W1) 19.00 mm
- Head Diameter (D) 34.00 mm
- Centre Height (l1) 57.00 mm
- Body Width/Flange Width(W2/D3) 22.00 / 25.00 mm
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GZNL14
- KWK TF14L
- EGZNL14
