TPM-0600-03500-S416 - Datasheet
MBA
Category Information

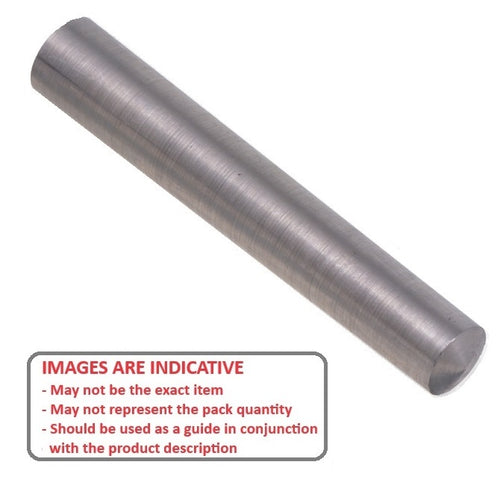

Pins - Taper Metric - Stainless SteelStainless Steel Taper Metric Pins. Metric Sizes Tapered 1:50. DIN 1 - A - Ground Ra 0.8um
- An expanded range may be available on special order. Please enquire.
- Metric Sizes to DIN 1.
Product Data
- Nom. Small End Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
35.00
mm
(Equiv. 1.378 in.) - Nom. Large End Diameter (D2)
6.70
mm
(Equiv. 0.264 in.) - Material Stainless Steel AISI 416 Rc 36-42
