TPM-0600-06000-EI - Datasheet
MBA
Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.

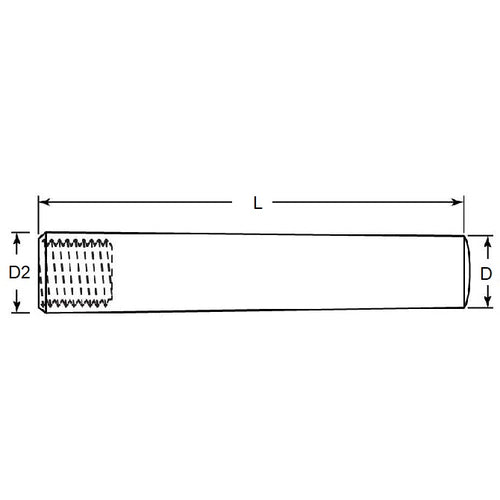

Product Data
- Nom. Small End Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
60.00
mm
(Equiv. 2.362 in.) - Nom. Large End Diameter (D2)
7.20
mm
(Equiv. 0.283 in.) - Thread Size M4 (4x0.7mm)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor TPTMIS-060-060
- TPM060006000EX
- TPX660
- TPX6-60
- TPTMIS060060
