Miniature Bearings Australia
TPM-0600-02800-EI - Datasheet
MBA
Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.

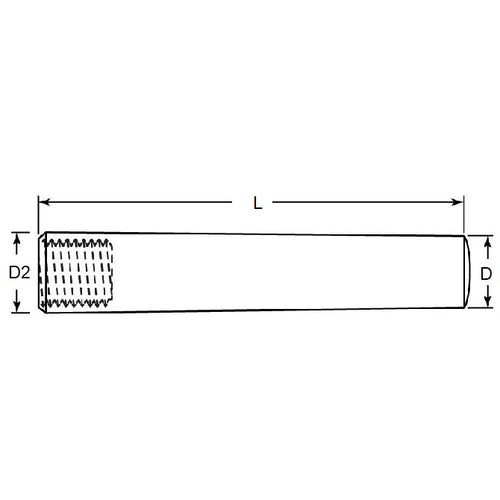

Product Data
- Nom. Small End Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
28.00
mm
(Equiv. 1.102 in.) - Nom. Large End Diameter (D2)
6.56
mm
(Equiv. 0.258 in.) - Thread Size M4 (4x0.7mm)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPX628
- TPM060002800EX
- TPX6-28
