TPM-0600-02600-EI - Datasheet
ENQUIRE
Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.

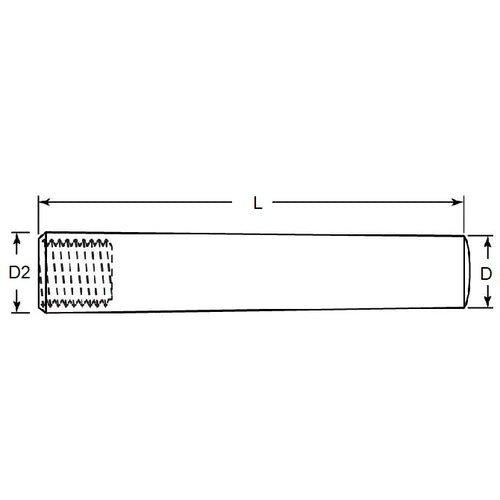

Product Data
- Nom. Small End Diameter (D) : 6.00 mm
- Length (L) 26.00 mm
- Nom. Large End Diameter (D2) 6.52 mm
- Thread Size M4 (4x0.7mm)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPX6-26
- TPX626
- TPM060002600EX
