TPM-0600-02000-EI - Datasheet
MBA
Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data

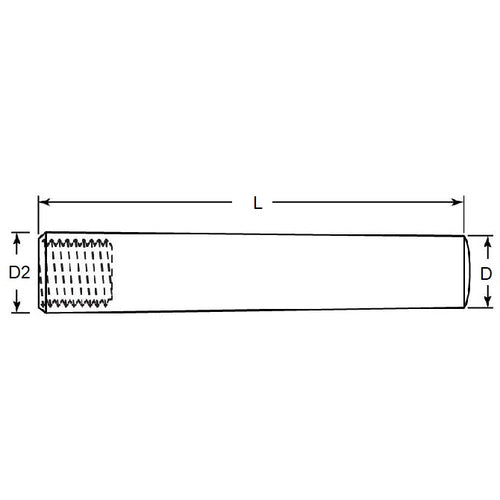

- Nom. Small End Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
20.00
mm
(Equiv. 0.787 in.) - Nom. Large End Diameter (D2)
6.40
mm
(Equiv. 0.252 in.) - Thread Size M4 (4x0.7mm)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPX620
- TPM060002000EX
- TPX6-20
